Waterproof IP65 Night Vision Mini HD 720P IP Camera Wireless Wifi Bullet Camera IR Onvif P2P Home Security Cam Outdoor Indoor
Holdoor Wi-Fi AP IP camera DHB-00231 is powered by Low power consumption SoC advanced COMS Sensor. This true Full HD camera supply 1280 x 720 1.0 Megapixel live video.

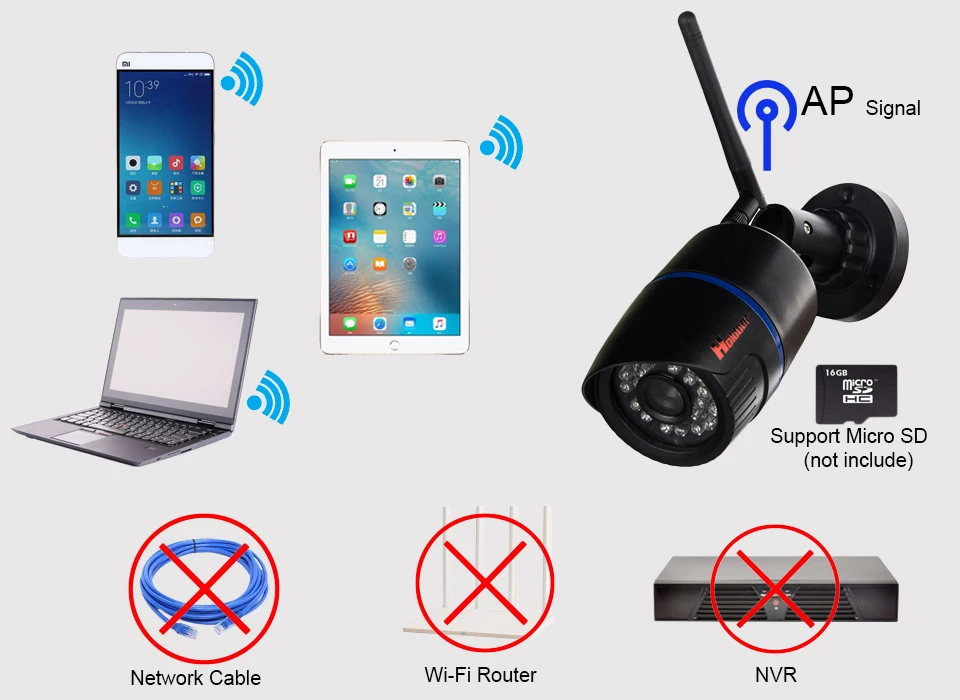

Wi-Fi AP Camera, Smart phone/ Laptop/ Table, Micro SD Card; You can build a minimal security camera system only have those three section. Wi-Fi AP Camera capture videos or pictures from object field; micro sd card save data; Smart phone/ Laptop/ Table shows live video or recording video and control or set the camera through AP signal connection directly between camera and terminal device.
(Please note that the AP signal only have about 10 meter effective distance without obstacles.)
When you are traveling, working or resting, you can watching all of your care about anywhere and anytime online.

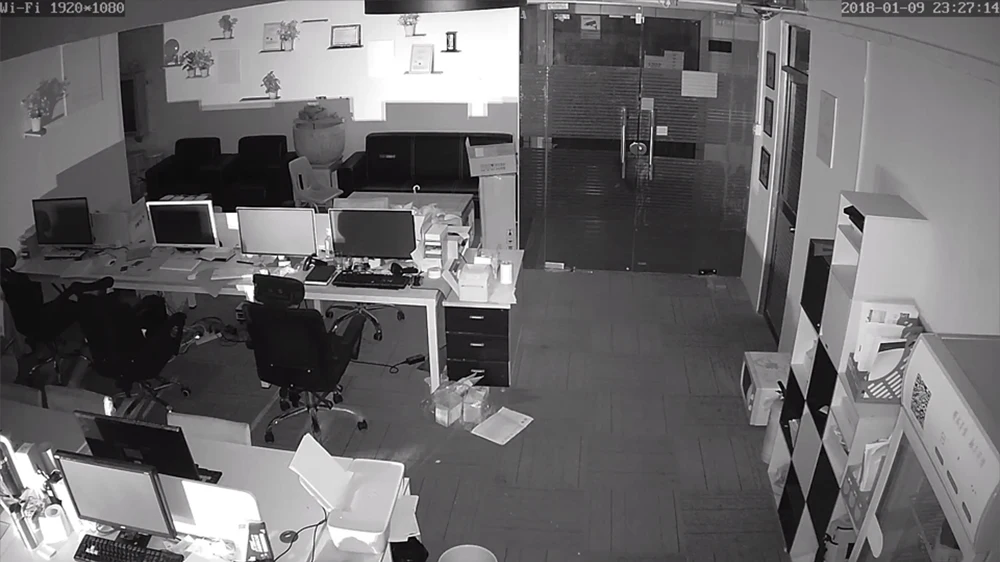

With smart IR-Cut filter, day and night vision becomes crisp and vivid. Stay confident that you’ll always have a reliable eye spy.
3 Connection Way
This camera support 3 connection way. Wi-Fi/Wired/AP mode connection. Wired connection is the most reliable, Wi-Fi connection is the most convenient and AP mode is the most simple and cheapest way.( In computer networking , a wireless access point (WAP), or more generally just access point (AP), is a networking hardware device that allows a Wi-Fi device to connect to. For this camera, you can use smartphone/table/laptop connect the AP Camera peer to peer through AP)

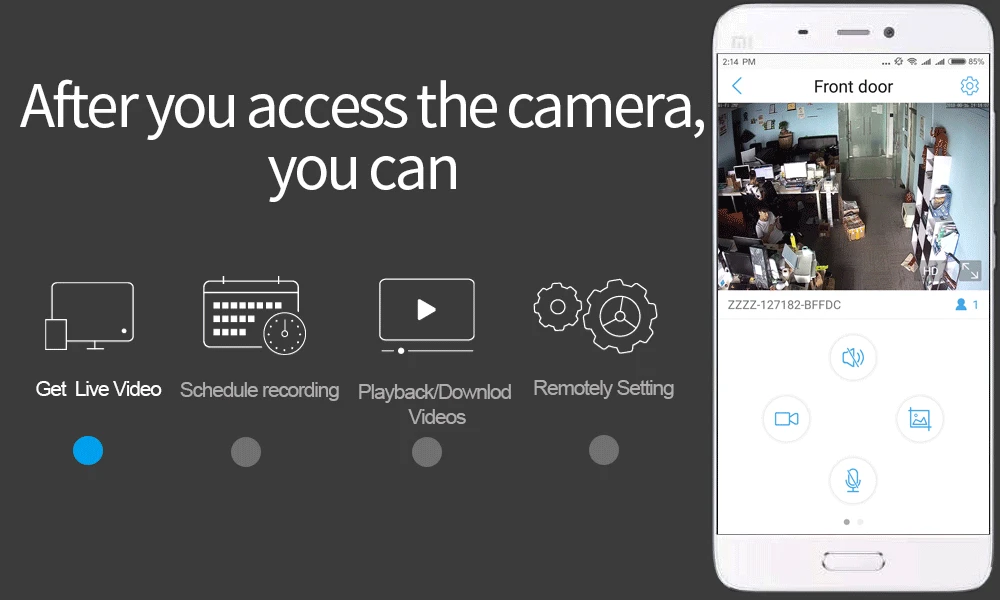

This camera support working as local or P2P mode. You can use iOS, Android phone or table PC to view live or recording video from anywhere and any time freely. It support most all of the main browser such as Chrome, Firefox, IE, Edge, Safari and so on.
Easy Installation and Setup
With only 4 steps, you can setup the Holdoor Wi-Fi AP Camera by Android/iOS phone or table easily.
Multi Language Support for APP
You can open four windows to detect motion. All the 4 zone could be adjusted the sensitivity independently. You never be worry about the false alarm from swaying trees or flowers.
Motion Detection Action
Micro SD card, FTP server and email all support capturing pictures when motion detection is triggered. Or you can record the videos of motion moment on micro sd card or FTP server. Beside that, app CamHi also can push message to your smartphone. You can replay the motion moment easily.
4 windows could be built to mask your private area
2.5 Recording Way
Holdoor AP Camera support Regular NVR and micro sd card recording, you can choose the most suitable one or two recording way to make your video safe.

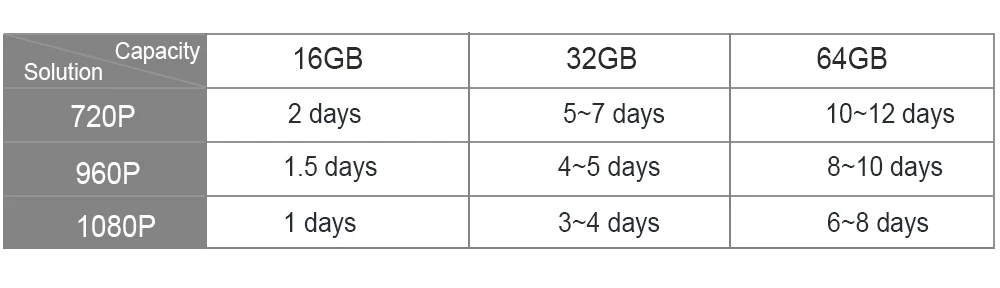

Support up to 64GB Micro SD Card
The TF card slot allows you to insert a 64GB TF card, which means you can save images and videos for later viewing. Meanwhile, the large memory allows you to record everything you want without missing a moment.
Real Snap by different Lens
App available on both Android and iOS store
|Camera||Image Sensor:||1/3.6″ Progressive Scan CMOS|
|Min. Illumination:||0.1Lux @ (F1.2, AGC ON) ,0 Lux with IR|
|Shutter time:||1/25(1/30) s to 1/100,000 s|
|Day& Night:||IR cut filter with auto switch|
|Digital noise reduction:||3D DNR|
|Backlight compensation:||Yes, zone optional|
|Lens||Focus||2.8mm, 3.6mm, 6mm, 8mm, 12mm|
|Angle of view||75°(2.8mm), 60°(3.6mm), 45°(6mm), 30°(8mm), 25°(12mm)|
|Bit Rate:||32 Kbps ~ 4 Mbps|
|Max. Image Resolution:||1280*720|
|Frame Rate:||50Hz: 20fps (1280 × 720), 25fps (640 × 352)|
|60Hz: 20fps (1280 × 720), 25fps (640 × 352)|
|Image Settings:||Saturation, brightness, contrast adjustable through client software or web browser|
|Night Vision||IR LED||24pcs 850 nm IR LED,|
|IR distance||upto 20m IR distance|
|Storage||storage mode||Local / client storage|
|local storage||Micro TF Cardc Slot|
|Capacity||up to 64GB(Class 10)|
|Backup||Support APP/IE/PC CMS backup remotely|
|Alarm||Motion detection||Support 4 zone motion detection, Independent settings|
|Alarm action|| Email Alert with pictures to setting receiver; FTP Alert, Send picutures to FTP server; Mobile App alert. Send notification
to smart phone APP; Micro SD card recording.
|Network||Protocols:||TCP/IP, HTTP, DHCP, DNS, DDNS, RTSP, RTMP, PPPoE, SMTP, NTP, UPnP,|
|System Compatibility:||ONVIF 2.1|
|Communication Interface:||1 RJ45 10M / 100M ethernet interface|
|Browser||IE,firefox,chrome, Edge, Safari etc.|
|System configuration||Win XP,Vista,Win7,Win 8, Win10; iPhone iOS7, android version 5.0 or higher|
|Remote||support DDNS, P2P|
|General||Operating Conditions:||-5 °C ~ 45 °C|
|Power Supply:||DC 12V/1A|
|Power Consumption:||Max. 5 W (Max. 10 W with IR cut filter on)|
|Dimensions:||168×60×68 mm (6.6” × 2.4” × 2.8”)|
|Weight:||240g (0.55 lbs)|
